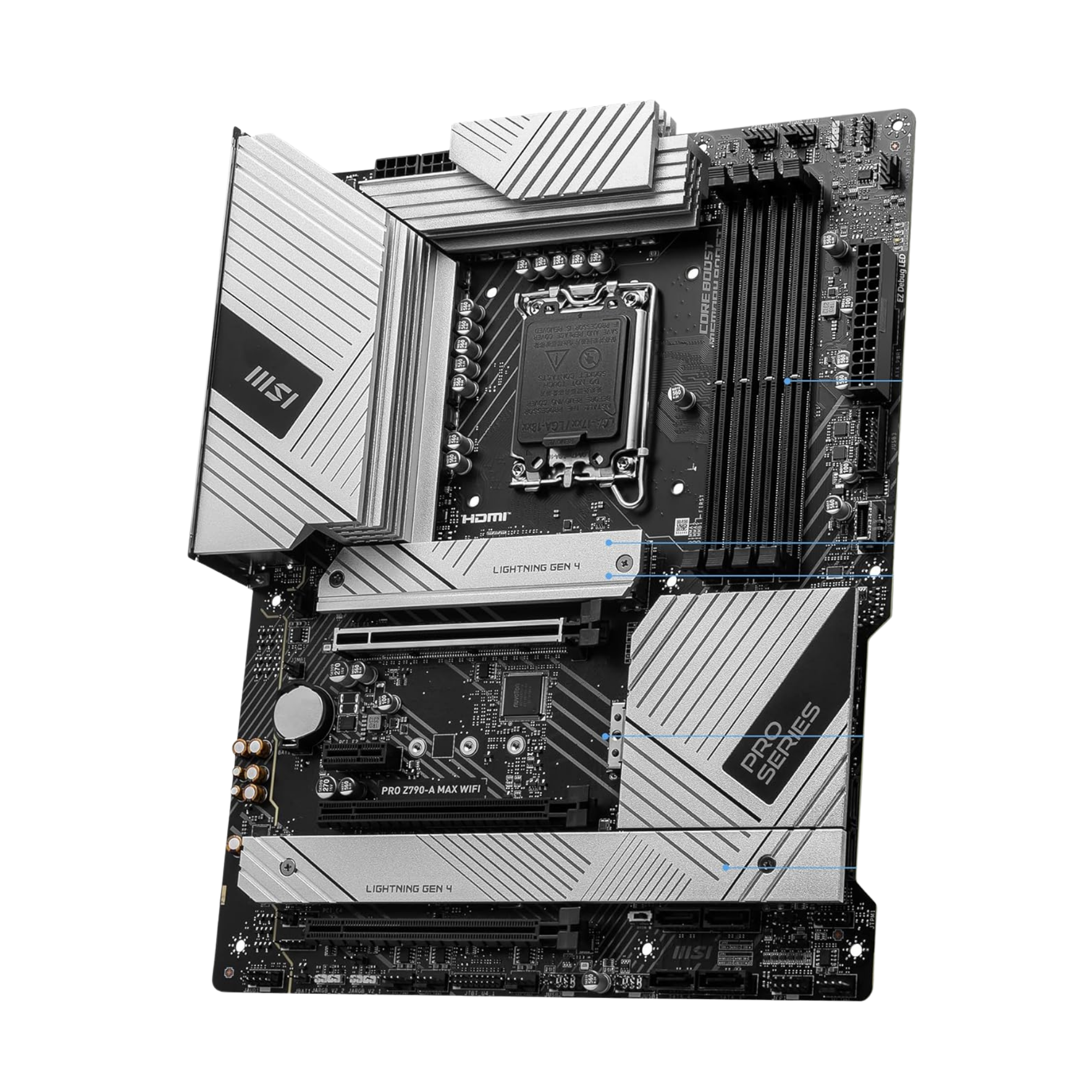

MSI PRO Z790-A MAX Motherboard

Chipset: Z790

Board Size: ATX (30.5cm x 24.4cm)

LGA 1700: Supports Intel Core 12th, 13th, 14th Gen Processors

4x DDR5 DIMM: Dual Channel up-to 256GB, OC 7800MT/s

Audio: 7.1 CH HD

LAN: Intel 2.5 GbE LAN

WLAN: Dual-band Wi-Fi 7, Bluetooth 5.4

PCIe Card Slots:

1x PCIe x16 slot: 5.0 x16 from CPU

1x PCIe x1 slot: 3.0 x1 from Chipset

1x PCIe x16 slot: 4.0 x4 from Chipset

1x PCIe x16 slot: 3.0 x1 from Chipset

Back Panel I/O Ports:

1x DisplayPort

2x USB 2.0

1x 2.5G LAN

5x 3.5mm Audio Ports

1x HDMI™

1x Flash BIOS Button

2x USB 3.2 Gen 1 5Gbps (Type-A)

3x USB 3.2 Gen 2 10Gbps (Type-A)

1x USB 3.2 Gen 2x2 20Gbps (Type-C)

1x S/PDIF-OUT

WiFi / Bluetooth Antenna connectors

Storage:

4 x M.2 NVMe PCIe 4.0 x4

6 x SATA

Internal I/O Connectors:

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

1x USB4 card connector (JTBT_U4_1, supports RTD3)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports
